Stainless Reducing Tee
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless reducing tee in China. Please feel free to buy customized stainless reducing tee at competitive price from our factory. Also, free sample is available.
stainless steel unequal tee Manufacturer - A Professional Manufacturer
Item No:
The stainless reducing tee, also known as the unequal tee pipe fitting, is a commonly used pipe fitting in pipeline systems. Made from stainless steel, it has three openings. Two of these openings are aligned in the same direction, while the third one is perpendicular or at an angle to the other two. It uses threaded connections to join pipes, making it convenient for installation and removal.
Our company is proud to introduce our latest innovative product, the stainless reducing tee, designed to connect pipes of different sizes. This product aims to meet the needs of pipeline systems, especially when it is necessary to connect different-sized pipes to the main pipeline. We offer a wide range of unequal tee pipe fittings for you to choose from.
Advantages of stainless steel threaded reducing tee Manufacturer
We have a 6-member design team capable of designing and developing new products based on customer drawings or samples.
We have a 5000-square-meter warehouse stocked with various stainless steel pipe fittings and ball valves. Our monthly production capacity is 240 tons.
Our main thread types include BS21 (BSPT, BSP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B0203/2 (PT), KS B0221 (PT), ISO7-1 (BSPT), and more.
We have professional designers and engineers who can provide technical support for your project based on your needs.
Quality Control of Unequal Tee Pipe Fittings Manufacturer
100% Material Test
LEADTEK has our own foundry. We do 100% chemical element testing for 2-3 times of each furnace during casting according to ASTM A351/A351M standard.
100% Appearance Inspection
We will make final visual inspection to pick out the burr, deform, rust, solder, porosity and cracked defects.
After-sale Service
We challenge ourselves with excellent product quality during production. If there is any quality problem when you get the goods, please have no many worries. We will take the responsibility.
Stable Quality
Leadtek has strong technical strength and quality management to control the product quality and stability.
Stainless Steel Threaded Tee VS Butt-Weld Tee
Stainless Steel Threaded Tee
Connection Method: Uses threaded connections, requiring only the tightening of two threaded interfaces for connection, making installation simple and quick.
Features: The stainless steel threaded reducing tee is convenient for installation.
Stainless Steel Butt-Weld Tee
Connection Method: Uses welding connections, requiring professional welding techniques and equipment for operation.
Features: The stainless steel unequal tee offers excellent sealing and pressure resistance, capable of stable operation in harsh working environments.
Applications
The ss reducing tee is widely used in various industries due to its strong corrosion resistance and easy installation.
● Petrochemical Industry
● Chemical Production
● Construction
● Drainage Systems
● Food Processing
Practical Information
Made from CF8M (316) stainless steel material, meeting ISO 4144 standards.
Threads comply with ISO 7-1 (DIN2999) BSPP female, BSPT male.
Manufactured according to ISO9001:2015 quality system.
Pressure-temperature ratings are shown in the table below.
|
Temperature (°C) |
Max Working Pressure (bar) |
|
-20 to 40 |
20 |
|
100 |
16.5 |
|
150 |
15 |
|
200 |
14 |
|
220 |
13.5 |
paramenters of CRA series
Expedite multifunctional data after next-generation solutions done foster extensible total linkage after enterprise methodologies never enable resource maximizing relationships
|
Temperature (°C) |
Max Working Pressure (bar) |
|
-20 to 40 |
20 |
|
100 |
16.5 |
|
150 |
15 |
|
200 |
14 |
|
220 |
13.5 |
*Note 1: Pressure at intermediate temperatures can be determined using interpolation.
*Note 2: The temperatures indicated refer to the internal fluid temperature.
*Note 3: Pipe load, stress, and torque are not considered.

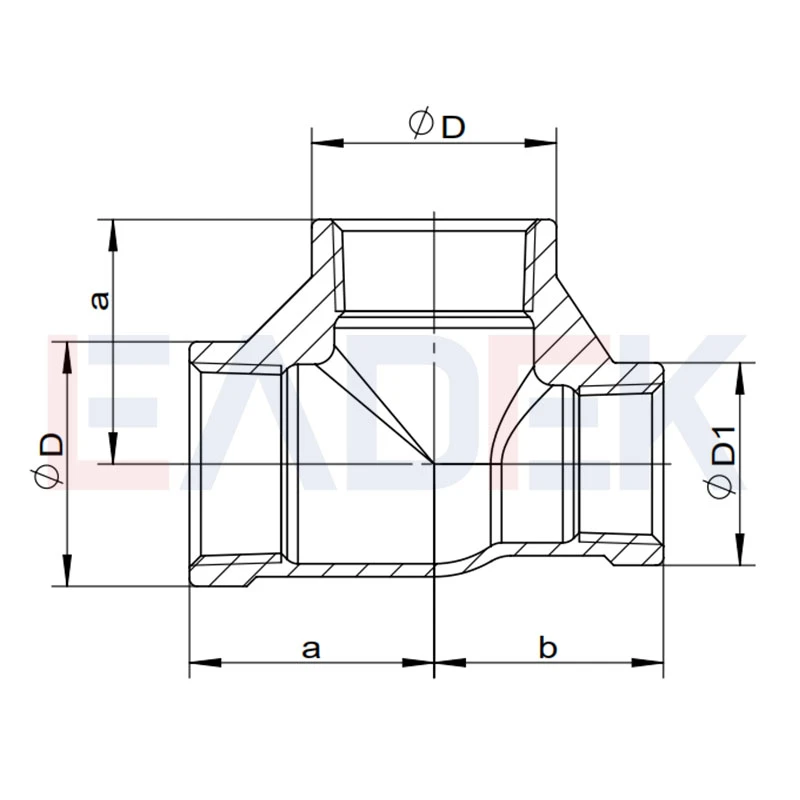

Dimension
|
Size |
ΦD mm |
ΦD1 mm |
a mm |
b mm |
W. kgs |
|
1/2"F-1/2"F-1/4"F |
0.074 |
||||
|
3/4"F-3/4"F-1/2"F |
32 |
26.5 |
32 |
30 |
0.1025 |
|
1"F-1"F-1/2"F |
39.5 |
26.5 |
37 |
33 |
0.1745 |
|
1"F-1"F-3/4"F |
39.5 |
32 |
37 |
35 |
0.1855 |
|
Size |
ΦD mm |
ΦD1 mm |
a mm |
b mm |
W. kgs |
|
1/2"F-3/4"F-1/2"F |
32 |
26.5 |
30 |
29 |
0.1 |
|
1/2"F-1"F-1/2"F |
39.5 |
26.5 |
33 |
32 |
0.1305 |
|
3/4"F-1"F-3/4"F |
39.5 |
32 |
35 |
34 |
0.155 |
|
1"F-11/4"F-1"F |
48.5 |
39.5 |
42 |
40 |
0.241 |
|
Size |
ΦD mm |
ΦD1 mm |
a mm |
b mm |
c mm |
N.W. kgs |
|
3/4"F-1/2"F-1/2"F |
32 |
26.5 |
30 |
29 |
27 |
0.1 |
|
1"F-1/2"F-1/2"F |
39.5 |
26.5 |
33 |
32 |
27 |
0.131 |
|
1"F-3/4"F-3/4"F |
39.5 |
32 |
35 |
34 |
32 |
0.178 |
|
3/4"F-1/2"F-1/2"F |
32 |
26.5 |
30 |
29 |
27 |
0.1 |
Specification
