Stainless Steel Male Tee
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of stainless steel male tee in China. Please feel free to buy customized stainless steel male tee at competitive price from our factory. Also, free sample is available.
Product Introduction

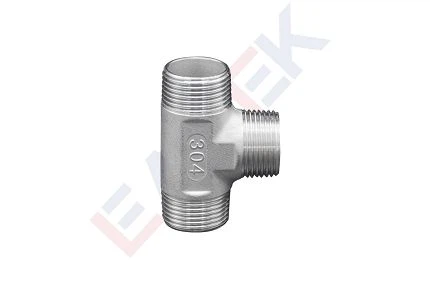

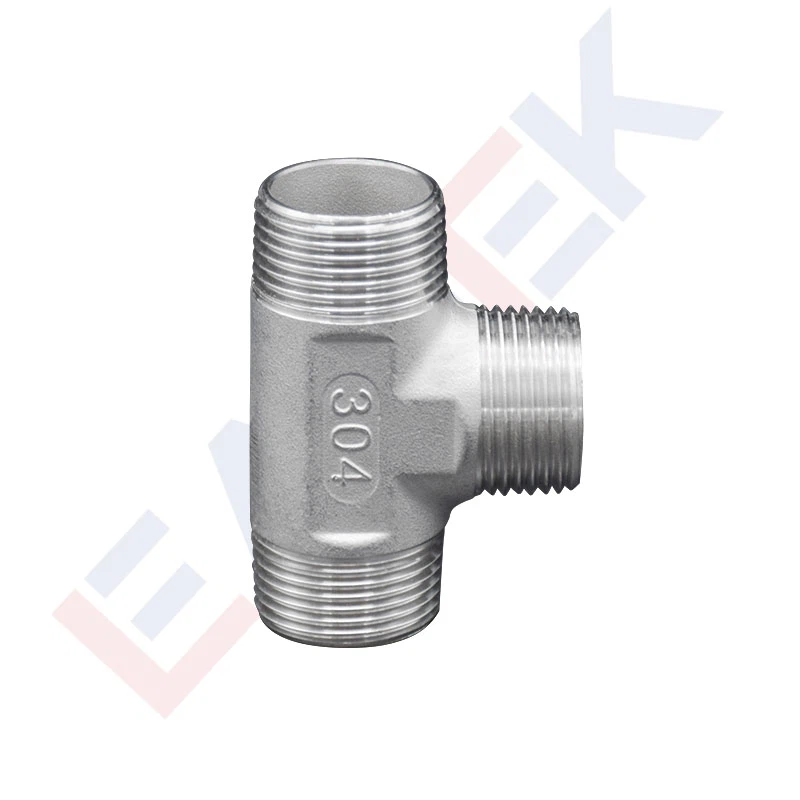

Stainless steel male tee is a T-shaped threaded pipe fitting with external (male) threads on all three ports - one run-through axis and one branch outlet - allowing direct connection to female-threaded pipes, valves, or equipment without additional adapters. Leadtek manufactures this fitting to ISO 4144 in SS304 and SS316, covering nominal sizes from 1/4" to 2" (DN8 to DN50).
The all-male thread configuration makes this fitting the preferred choice wherever a branch line must tie into a main run at a straight junction and connect directly to internally threaded components. It is widely used in food processing, chemical handling, water treatment, and industrial plumbing systems where corrosion resistance and leak-free performance are non-negotiable.
Product Features
All-External Thread Configuration
All three ports carry male threads, enabling direct connection to female-threaded valves, unions, or pipe ends. This eliminates the need for intermediate adapters and simplifies assembly in tight piping layouts.
ISO 4144 Dimensional Compliance
Manufactured to ISO 4144 standards, ensuring dimensional interchangeability with fittings from other compliant suppliers. Thread options cover NPT (ANSI/ASME B1.20.1), BSPT/BSPP (BS21), and metric equivalents per customer market requirements.
SS304 and SS316 Material Options
Standard production runs in SS304 for general industrial and construction applications. SS316 (with 2–3% molybdenum content) is available for chloride-rich environments, marine service, or chemical media requiring enhanced pitting resistance. SS304L and SS316L low-carbon variants are also available on request.
Rated for Working Pressures up to 2 MPa
At ambient temperature (–20°C to 40°C), these fittings carry a non-shock maximum working pressure of 2 MPa, derated to 1.35 MPa at 220°C. Suitable for steam, air, water, oil, and non-flammable gas service (Class 150).
Dimensions

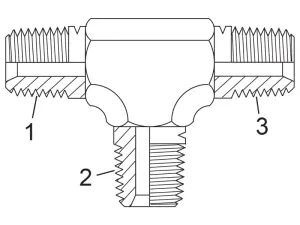

The table below lists standard dimensions for Leadtek stainless steel male tees per ISO 4144. Dimension "a" refers to the center-to-end length. All weights are per piece.
|
Size |
DN |
a mm |
W. kgs |
|
1/4" |
8 |
26 |
0.0435 |
|
3/8" |
10 |
28 |
0.0585 |
|
1/2" |
15 |
33 |
0.1 |
|
3/4" |
20 |
37.5 |
0.143 |
|
1" |
25 |
40 |
0.2075 |
|
1-1/4" |
32 |
49 |
0.2975 |
|
1-1/2" |
40 |
53 |
0.3895 |
|
2" |
50 |
64 |
0.645 |
Reducing configurations and sizes outside this range are available on request. Please provide required port sizes when submitting an inquiry.
Specification
Pressure - Temperature Ratings
These ratings apply to Class 150 service on ordinary pipelines carrying steam, air, oil, water, or non-flammable gas with working pressure below 2 MPa.
|
Temperature ℃ |
-20~40 |
100 |
150 |
200 |
220 |
|
Non-shock maximum working pressure (Mpa) |
2 |
1.65 |
1.5 |
1.4 |
1.35 |
Note: Intermediate temperature ratings may be interpolated linearly. Ratings are based on internal fluid temperature and do not account for external piping loads, stresses, or moments.
Thread Standard
Leadtek supplies stainless steel male tees in the following thread standards to suit regional market requirements:
|
Nation |
GB |
JIS |
KS |
DIN |
BS |
ASTM |
|
Thread |
R, Rc, Rp, G |
PT, PF |
PT, PF |
R, Rp |
BSPT, BSPP |
NPT, NPSC |
|
Standard |
GB/T7306 GB/T7307 |
JIS B0203 JIS B0203 |
KS B0221 KS B0222 |
DIN2999 |
BS21 |
ANSI/ASME B1.20.1 |
If your project specifies a thread standard not listed above, contact us with your technical drawing for confirmation.
OEM & Customization
Leadtek accepts OEM and custom orders for stainless steel male tees outside standard ISO 4144 configurations. Custom scope includes non-standard reducing port combinations, special thread forms (e.g., left-hand threads, straight-to-taper transitions), surface finishes (electropolished, passivated, or PED-compliant), and private-label marking. Minimum order quantities apply for non-standard runs; tooling costs are assessed on a project basis. Submit a drawing or specification sheet through the inquiry form and our technical team will respond within one business day.
Why Choose Leadtek
Leadtek has manufactured ISO 4144 stainless steel pipe fittings for over a decade, supplying distributors and OEM customers across Europe, North America, and Southeast Asia. Our in-house production covers raw material sourcing, CNC threading, pressure testing, and dimensional inspection against ISO 4144 tolerances before shipment. Competitive lead times, flexible MOQs for standard items, and a dedicated export documentation team make us a practical sourcing partner for both project orders and standing purchase agreements.
FAQ
Q: What is the difference between a male tee and a standard equal tee?
Q: Are your male tees available in both NPT and BSP thread forms?
Q: What is the maximum working pressure for a 1/2" SS304 male tee at 100°C?
Q: Can I get SS316L instead of standard SS316?
