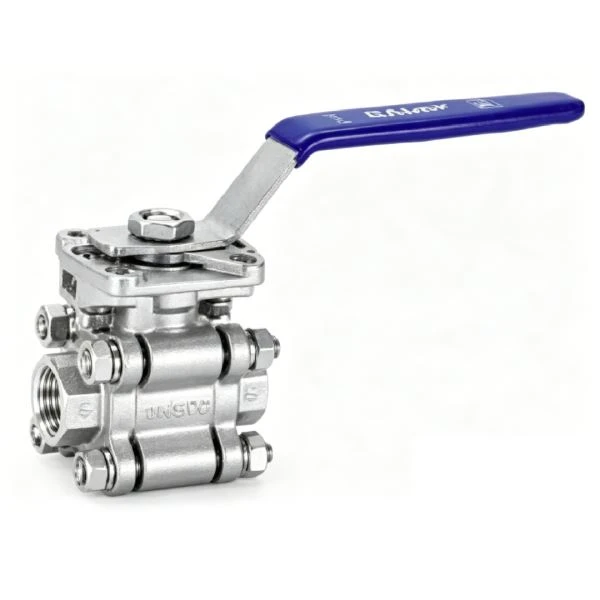

Mounting Pad Ball Valve
Sizes 1/4"–4", API 608 design, suitable for water, oil, and gas service.
Three-piece construction enables in-line maintenance without pipeline removal.
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of mounting pad ball valve in China. Please feel free to buy customized mounting pad ball valve at competitive price from our factory. Also, free sample is available.
Product Overview
The Leadtek 3PC Threaded Mounting Pad Ball Valve (Code: 30-0C2G0) is a full port, female-to-female threaded ball valve with an integrated ISO5211 mounting pad, engineered for direct actuator mounting without additional adapters. The three-piece body design allows in-line maintenance - valve seat, seals, and ball can be inspected or replaced without cutting the pipeline. Body material is CF8 or CF8M, rated to 1000PSI, compliant with API 608, and passed the RoHS test. Available from 1/4" to 4".
Key Specifications
Product drawing
| Parameter | Details |
|---|---|
| Product Code | 30-0C2G0 |
| Type | 3PC Threaded, Full Port, Female-Female (F-F) |
| Design Standard | API 608 |
| Pressure Rating | 1000 PSI |
| Face to Face | MFR STD |
| Thread Standard | ASME B1.20.1 / BS 21 / DIN 2999 / BS EN 10226 / JIS B 0203 / ISO 7-1 / ISO 228-1 |
| Inspection | API 598 / EN 12266-1 |
| Body Material | CF8 / CF8M |
| Ball Material | F304 / F316 |
| Stem Material | F316 |
| Seat Material | M111 / M111+20%CF |
| Mounting Pad | ISO5211 (F03/F04 to F07/F10 depending on size) |
| Size Range | 1/4" – 4" |
| Media | Water, Oil, Gas |
| Temperature | M111: -40°C to -200°C / M111+20%CF: -40°C to -240°C |
Dimensional Table
| Size | Ød (mm) | L (mm) | H1 (mm) | h (mm) | H (mm) | E (mm) | ISO5211 | A | B | A1 | B1 | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 11 | 64 | 42.5 | 9 | 70 | 120 | F03/F04 | 36 | 42 | 6 | 7 | 9 |
| 3/8" | 12.5 | 64 | 42.5 | 9 | 70 | 120 | F03/F04 | 36 | 42 | 6 | 7 | 9 |
| 1/2" | 15 | 68 | 45 | 9 | 72 | 120 | F03/F04 | 36 | 42 | 6 | 7 | 9 |
| 3/4" | 20 | 76 | 48.5 | 9 | 76 | 120 | F03/F04 | 36 | 42 | 6 | 7 | 9 |
| 1" | 25 | 88 | 63 | 11 | 94 | 150 | F04/F05 | 42 | 50 | 6 | 7 | 11 |
| 1 1/4" | 32 | 103 | 68.5 | 11 | 100 | 150 | F04/F05 | 42 | 50 | 6 | 7 | 11 |
| 1 1/2" | 38 | 111 | 80.5 | 14 | 117 | 190 | F05/F07 | 50 | 70 | 7 | 9 | 14 |
| 2" | 50 | 132 | 89 | 14 | 125 | 190 | F05/F07 | 50 | 70 | 7 | 9 | 14 |
| 2 1/2" | 65 | 163 | 113.5 | 17 | 155 | 260 | F07/F10 | 70 | 102 | 9 | 11 | 17 |
| 3" | 76 | 185 | 121.5 | 17 | 163 | 260 | F07/F10 | 70 | 102 | 9 | 11 | 17 |
| 4" | 100 | 226 | 150 | 22 | 196 | 320 | F07/F10 | 70 | 102 | 9 | 11 | 22 |
Bill of Materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Bonnet | CF8 / CF8M |
| 3 | Ball | F304 / F316 |
| 4 | Seat | M111 / M111+20%CF |
| 5 | Sealed Bushing | PTFE+15%GF / PTFE+20%CF |
| 6 | Stem | F316 |
| 7 | Thrust Washer | PTFE+15%GF / PTFE+20%CF |
| 8 | Packing Washer | PTFE / PTFE+20%CF |
| 9 | Gland | 304 |
| 10 | Disc Spring | SS304 |
| 11 | Gland Flange | CF8 |
| 12 | Stopper | F304 |
| 13 | Nut | A2-70 |
| 14 | Stud | F304 |
| 15 | Nut | A2-70 |
| 16 | Spring Washer | SS304 |
| 17 | Stud | F304 |
| 18 | Nut | A2-70 |
| 19 | Spring Washer | SS304 |
| 20 | Handle | 304 |
| 21 | Handle Cover | PVC |
Design Features
configuration on this model follows ISO5211,
enabling direct bolt-on of pneumatic or electric actuators - no additional mounting bracket required. The full port bore eliminates flow restriction and supports pigging. Additional design features include:
- 1. Back seal with multiple leakage-proof design
- 2. Adjustable packing without disassembly
- 3. Seat resilient seal design
- 4. Valve seat with bushing design
- 5. Stem anti-ejection and anti-scratch design
- 6. Full bore, full specification solid ball design
- 7. Ball pressure relief hole design
- 8. Fire safety design (optional)
- 9. Anti-static electricity design
- 10. ISO5211 platform compliance for actuator mounting
- 11. RoHS compliant
- 12. Investment casting construction
- 13. Various thread standards available
Why Specify a Full Port Ball Valve with Mount Pad
For procurement engineers and system integrators specifying automated pipeline control, the mounting pad ball valve configuration reduces installation cost and alignment error versus separate valve-plus-bracket assemblies. The ISO5211 pad on this model is standardized across size groups (F03/F04 up through F07/F10), which means a single actuator model can be specified across a full size range in the same system - reducing spare parts inventory. Full port bore ensures no pressure drop penalty, which matters in water injection, oil & gas transfer, and chemical dosing systems where pipeline diameter must be maintained.
Applications
Oil & gas transfer and wellhead control
Chemical and petrochemical process lines
Water treatment and industrial water systems
Automated skid-mounted systems requiring ISO5211 actuator mounting
Fire safety systems
Data center cooling and chilled water distribution systems
Zhejiang Leadtek Fluid Technology Co., Ltd. has manufactured precision-cast stainless steel valves since 1994, with 30+ years of casting experience, a 37,000㎡ production facility, and 400+ CNC machines under one roof. The mounting pad ball valve series is produced via lost-wax investment casting with AOD-refined CF8/CF8M, followed by 5-axis CNC machining (ball roundness ≤0.01mm, sealing surface Ra 0.4μm), and 100% API 598 final inspection before shipment.
Certifications held: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, KC (Korean drinking water), and Special Equipment Manufacturing License (pressure pipe component). Products are exported to 80+ countries across Europe, North America, the Middle East, Southeast Asia, and South America.
Custom sizes, materials, and actuator-ready configurations are supported with factory lead times.
Frequently Asked Questions
Frequently Asked Questions
Q: What is a mounting pad ball valve?
A: A mounting pad ball valve integrates an ISO5211 mounting pad on the bonnet for direct actuator bolt-on without additional brackets. This is the standard configuration for automated pipeline control systems.
Q: What does ISO5211 mean on a ball valve?
A: ISO5211 defines the actuator mounting interface dimensions on quarter-turn valves. This mounting pad ball valve covers F03/F04 through F07/F10 depending on size.
Q: What is the difference between a full port and reduced port mounting pad ball valve?
A: A full port ball valve with mount pad maintains the same bore diameter as the pipeline, with no flow restriction. Reduced port valves use a smaller ball bore, which limits flow capacity.
Q: What pressure and inspection standards apply?
A: Rated 1000 PSI, designed per API 608, inspected per API 598 and EN 12266-1.
Q: What thread standards are available?
A: ASME B1.20.1 (NPT), BS 21, DIN 2999, BS EN 10226, JIS B 0203, ISO 7-1, and ISO 228-1.
Q: What body materials are available?
A: CF8 (SS304) and CF8M (SS316). CF8M is recommended for corrosive or higher-temperature media.
Q: Can this valve be directly mounted with a pneumatic or electric actuator?
A: Yes. The ISO5211 pad enables direct actuator mounting. Leadtek also supplies complete actuated ball valve assemblies - contact us to specify actuator type and control signal.
Q: What certifications does Leadtek hold?
A: ISO 9001, ISO 14001, ISO 45001, CE, RoHS, KC, and a Chinese Special Equipment Manufacturing License. All valves pass 100% API 598 inspection before shipment.
