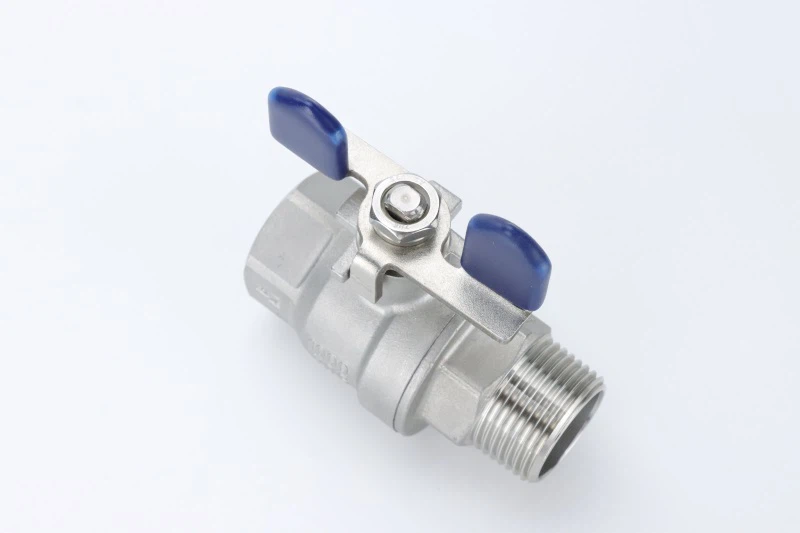

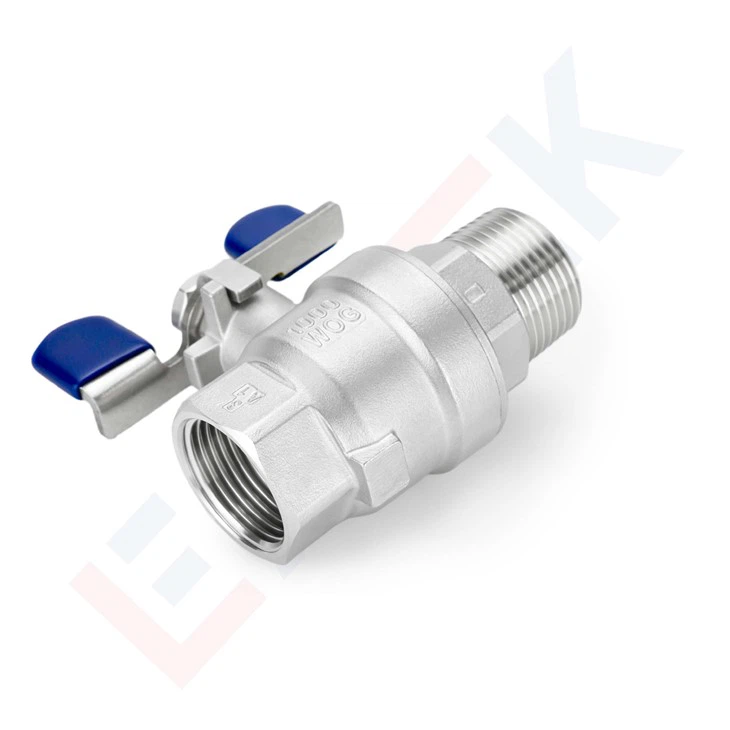

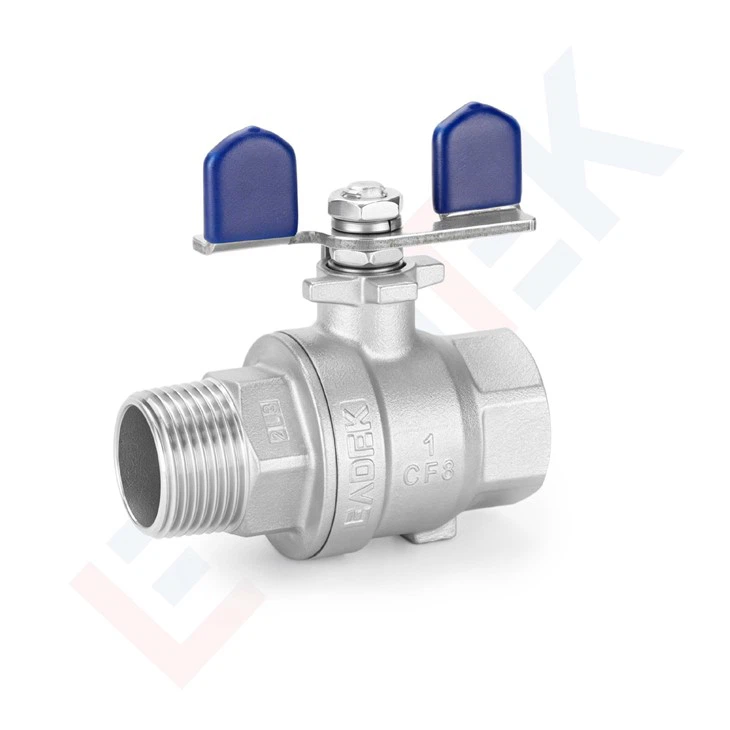

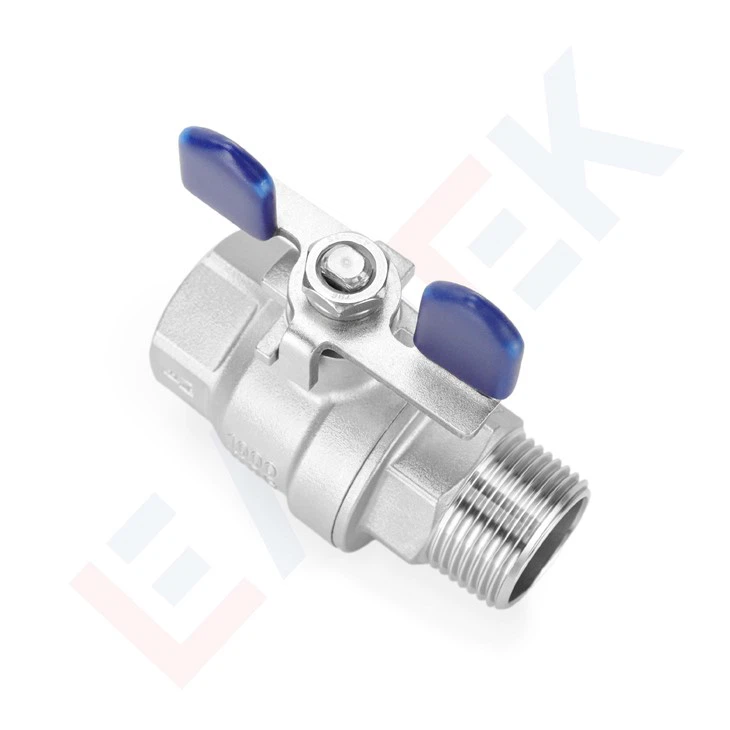

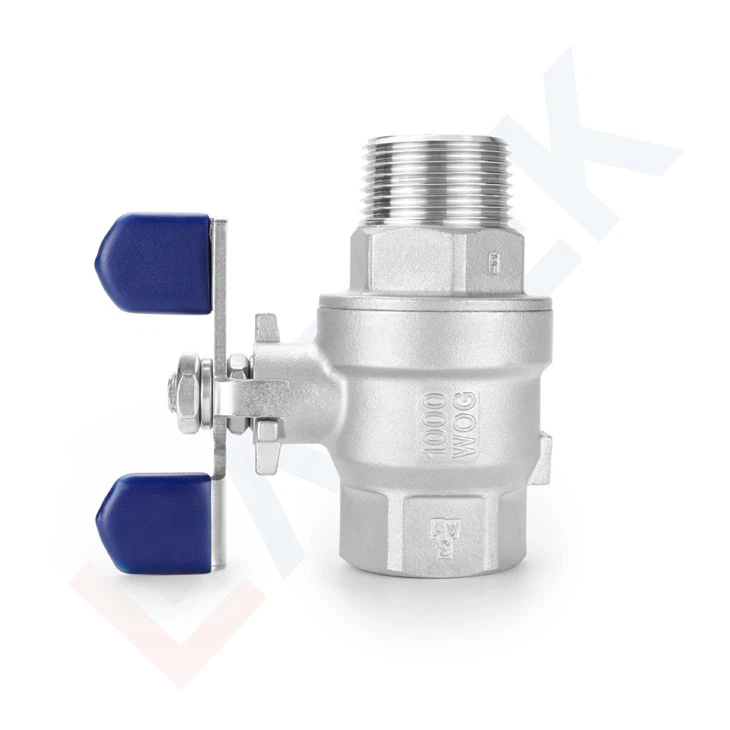

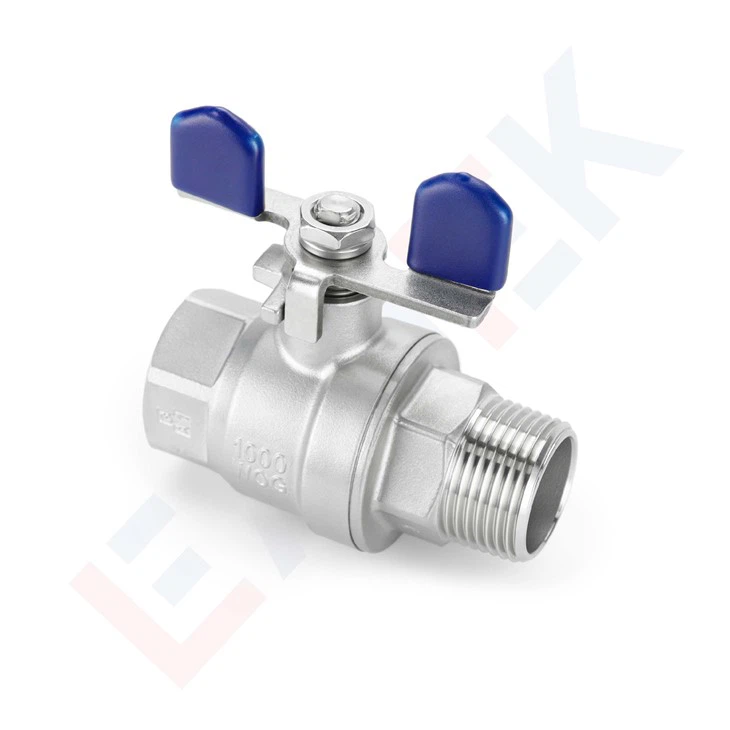

Male Female Butterfly Ball Valve
Built from CF8/CF8M via investment casting, it features a space-saving butterfly handle, anti-blowout stem, and adjustable packing.
Global thread compatible and certified (CE, RoHS, KC) for water, oil, gas, and chemical B2B applications.
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of male female butterfly ball valve in China. Please feel free to buy customized male female butterfly ball valve at competitive price from our factory. Also, free sample is available.
| No. | Parts |
|---|---|
| 1 | Body |
| 2 | Bonnet |
| 3 | Ball |
| 4 | Stem |
| 5 | Seat |
| 6 | Bonnet Gasket |
| 7 | Thrust Washer |
| 8 | Packing Washer |
| 9 | Packing Gland |
| 10 | Spring Washer |
| 11 | Nut |
| 12 | Handle |
| 13 | Handle Cover |
Overview
The LEADTEK Male Female Butterfly Ball Valve (also widely referred to as a 2PC threaded ball valve, MF ball valve, female to male butterfly ball valve, ball valve male x female, male x female ball valve, or male female threaded ball valve) is a premium-grade stainless steel flow control solution engineered for demanding industrial B2B applications. Designed to the 2-piece (2PC) body standard, this M-F LTE butterfly-type valve offers one male-threaded end and one female-threaded end, enabling direct inline installation without additional adapters.
Built from CF8 and CF8M stainless steel castings and rated to 1,000 PSI, this male female threaded ball valve delivers outstanding corrosion resistance, full-bore flow efficiency, and long-term operational reliability across water, oil, gas, chemical, and industrial fluid systems. Whether you are sourcing for OEM integration, project procurement, or distribution, LEADTEK's 2PC MF ball valve meets the highest international quality benchmarks.
Key Technical Specifications
Product Name: Male Female Butterfly Ball Valve / 2PC Threaded Ball Valve M-F LTE
Product Code: 30-0A112
Body Type: 2-Piece (2PC)
Connection: Male × Female Threaded (M-F)
Pressure Rating: 1,000 PSI
Design Standard: API 608
Face to Face: MFR STD
Thread Standards: ASME B1.20.1, BS 21, DIN 2999, BS EN 10226, JIS B 0203, ISO 7-1, ISO 228-1
Inspection Standard: API 598, EN 12266-1
Available Sizes: 1/4" – 2" (DN8 – DN50)
Body Material: CF8 (SS304) / CF8M (SS316)
Temperature Range: PTFE seat: -40°C ~ 120°C; PTFE+20%CF seat: -40°C ~ 200°C
Media: Water, Oil, Gas
RoHS Compliance: Yes - Passed RoHS Testing
Manufacturing Process: Investment Casting + CNC Precision Machining
Design Features & Engineering Advantages
The male female threaded ball valve is purpose-built for reliability and ease of maintenance in professional installations:
Back Seal Multiple Leakage-Proof Design
redundant sealing architecture prevents external leakage at the stem, ensuring long service intervals and reduced maintenance cost.
Adjustable Packing Without Disassembly
field technicians can re-tighten or replace stem packing without removing the valve from the pipeline, minimizing downtime.
Seat Resilient Seal Design
spring-energized PTFE seat maintains positive sealing across wide temperature and pressure ranges, eliminating fugitive emissions.
Stem Anti-Ejection Design
the stem is mechanically constrained against ejection under pressure, meeting strict safety requirements for high-pressure and pressurized systems.
Full Bore Design
full port bore eliminates flow restriction, reducing pressure drop and enabling in-line cleaning with pigging equipment.
Butterfly-Type Handle (LTE)
the compact lever handle enables quarter-turn actuation with clear open/close indication; handle cover is PVC for operator protection.
Investment Casting Body
near-net-shape casting delivers consistent wall thickness and surface finish, minimizing porosity and improving structural integrity.
Multi-Thread Standard Compatibility
available with ASME, BSP, DIN, JIS, and ISO threads to accommodate global pipeline specifications.

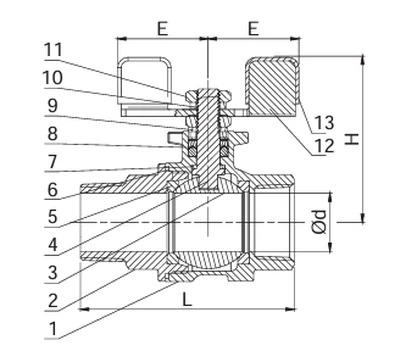

Dimensional Data (mm)
All dimensions are in millimeters. Ød = bore diameter; L = face-to-face length; H = installed height; E = handle width.
|
Size |
Ød (mm) |
L (mm) |
H (mm) |
E (mm) |
|
1/4" |
11 |
64 |
50 |
27.5 |
|
3/8" |
12.5 |
65 |
50 |
27.5 |
|
1/2" |
15 |
71 |
55 |
30 |
|
3/4" |
20 |
80 |
59 |
30 |
|
1" |
25 |
93 |
72 |
37.5 |
|
1-1/4" |
32 |
108 |
76.5 |
37.5 |
|
1-1/2" |
38 |
116 |
93.5 |
52.5 |
|
2" |
50 |
140 |
108 |
52.5 |

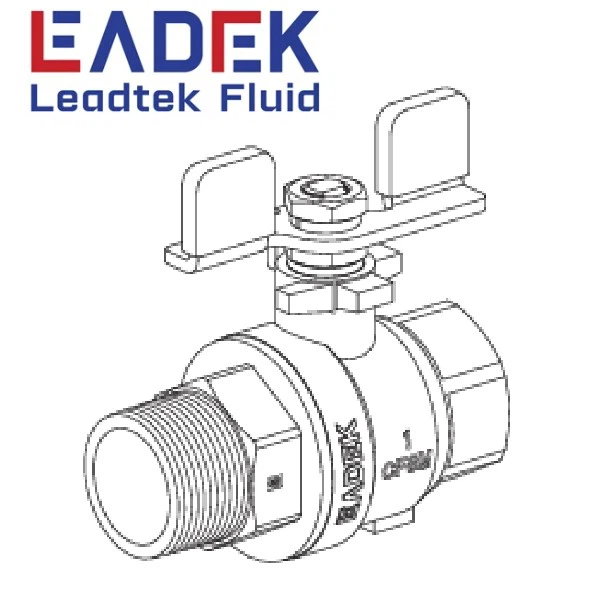

Male Female Butterfly Ball Valve drawing
Parts & Materials of Construction
LEADTEK supplies the male x female ball valve in two standard material configurations - CF8 (SS304 equivalent) and CF8M (SS316 equivalent) - to suit different corrosion environments. Custom material specifications are available upon request.
|
No. |
Part Name |
Material (CF8) |
Material (CF8M) |
|
1 |
Body |
CF8 |
CF8M |
|
2 |
Bonnet |
CF8 |
CF8M |
|
3 |
Ball |
F304 |
F316 |
|
4 |
Stem |
F304 |
F316 |
|
5 |
Seat |
PTFE / PTFE+20%CF |
- |
|
6 |
Bonnet Gasket |
PTFE / PTFE+20%CF |
- |
|
7 |
Thrust Washer |
PTFE+15%GF / PTFE+20%CF |
- |
|
8 |
Packing Washer |
PTFE / PTFE+20%CF |
- |
|
9 |
Packing Gland |
F304 |
- |
|
10 |
Spring Washer |
SS304 |
- |
|
11 |
Nut |
A2-70 |
- |
|
12 |
Handle |
201 |
304 |
|
13 |
Handle Cover |
PVC |
- |
Application Fields
The LEADTEK 2PC male female threaded ball valve is deployed globally across a wide range of B2B sectors:
Water Treatment & Building Services
potable water systems, cooling water circuits, HVAC distribution, and fire protection lines.
Oil & Gas
upstream wellhead equipment, midstream pipeline isolation, and downstream refinery process lines.
Chemical & Petrochemical Processing
corrosive media handling in reactors, heat exchangers, and storage tank manifolds.
New Energy
photovoltaic cooling systems, battery energy storage thermal management, and hydrogen transport lines.
Food & Beverage / Pharmaceutical
hygienic fluid control where CF8M (SS316) construction resists chloride attack.
Semiconductor & High-End Manufacturing
ultra-pure process fluid isolation requiring zero contamination.
Fire Safety Systems
reliable shut-off in sprinkler and suppression system headers.
Quality Certifications & Compliance
At LEADTEK, excellence is built into every stainless steel bibcock ball valve. Our manufacturing processes operate under a globally recognized, multi-standard quality management system.
LEADTEK's current certification and compliance portfolio includes:
Global Management Standards
Certified under ISO 9001 (Quality), ISO 14001 (Environmental), and ISO 45001 (Occupational Health & Safety) to ensure world-class operations.
01
European Market Access
Fully compliant with CE Marking and RoHS directives, meeting Europe's strict safety and environmental standards.
02
Safe Drinking Water Approvals
Certified by South Korea's KC and KCW standards, guaranteeing that our products and water-contact materials are safe for drinking-water supply systems.
03
Regulated Manufacturing & Innovation
Authorized with the Special Equipment Manufacturing License (for Pressure Pipeline Components) and officially recognized as a High-Tech Enterprise in Zhejiang Province.
04
Proprietary Technology
Backed by 40+ National Patent Authorizations, reflecting our continuous commitment to R&D and innovation.
05
Why Source from LEADTEK?
30+ Years of Precision Casting Expertise
Founded in 1994 by casting specialist Mr. Wanmian Chen, LEADTEK has accumulated over three decades of stainless steel investment casting know-how. Our vertically integrated process - from casting and CNC machining through assembly and testing - gives us end-to-end quality control that contract manufacturers cannot match.
Large-Scale Manufacturing Capacity
Our 400,000 sq.ft (37,000 m²) Changshan Industrial Park facility in Quzhou, Zhejiang operates 400+ advanced CNC machines and supports a monthly output exceeding 400 metric tons. For distributors and project buyers, this means reliable lead times even for large-volume orders.
Dedicated R&D and 100+ Valve Variants
LEADTEK's professional R&D team has developed more than 100 certified ball valve variants, holding a portfolio of 40+ national patents. This depth of product engineering means we can adapt the male female threaded ball valve to your specific pressure class, thread standard, material grade, or actuation requirement.
Global Market Presence - 80+ Countries
With products sold across Europe, the Americas, Asia-Pacific, the Middle East, and South America - including key markets such as the USA, Germany, Italy, the UK, South Korea, and Japan - LEADTEK maintains an established international customer network and a 20-person global marketing team to support your enquiries and after-sales needs.
Green Manufacturing
Our 2.4 MW on-site photovoltaic power generation system reduces carbon intensity per unit produced, supporting customers with ESG procurement targets and sustainability reporting requirements.
B2B Purchasing Information
MOQ: Negotiable - suitable for both project lot orders and ongoing distribution replenishment.
Lead Time: Standard models typically 2–4 weeks; large-volume or custom orders subject to production scheduling confirmation.
Packaging: Export carton with inner PE bag protection; pallet or wooden case available for bulk shipments.
OEM / Private Label: Custom branding, engraving, and packaging available for distributor and OEM partners.
Customization: Thread standard, material grade, seat compound, handle type, and pressure class can all be customized upon inquiry.
Certifications on Request: Test reports (hydrostatic, seat leakage, API 598), material certificates (3.1 Mill Certs), and compliance documentation available.
Frequently Asked Questions
Q: What is the difference between a male female ball valve and a standard ball valve?
A: A male female ball valve (also called an MF ball valve or ball valve male x female) has asymmetric end connections - one end with external (male) threads and the other with internal (female) threads. This makes it ideal for connecting to pipes of opposite thread types without additional unions, reducing installation complexity and potential leak points. A standard ball valve typically has identical connections on both ends.
Q: What does 'butterfly type' mean in a ball valve?
A: In the context of this 2PC threaded ball valve, 'butterfly type' (LTE) refers to the flat, lever-style handle - resembling a butterfly wing - rather than a T-bar or elongated handle. This compact handle design is widely favored in tight-space installations and is a common configuration across European and Asian markets for male female threaded ball valves.
Q: What is the maximum working pressure of this male x female ball valve?
A: This valve is rated to 1,000 PSI (approximately 68.9 bar / 6.89 MPa) working pressure. For higher-pressure applications, please contact LEADTEK for availability of higher-rated versions.
Q: Which seat material should I select?
A: Select PTFE for standard water, oil, or gas service up to 120°C. Choose PTFE+20%CF (carbon-fiber reinforced PTFE) for higher-temperature service up to 200°C or where enhanced wear resistance is needed in abrasive or high-cycle applications.
Q: Is this female to male butterfly ball valve suitable for drinking water?
A: Yes. LEADTEK holds KC and KCW certifications confirming that our stainless steel ball valves meet Korean drinking-water sanitary safety standards. Products also comply with RoHS for restricted hazardous substances. For specific regulatory requirements in your market, please request the relevant test documentation.
Request a Quote or Technical Consultation
LEADTEK welcomes inquiries from distributors, EPC contractors, OEM manufacturers, and project procurement teams worldwide. To receive a competitive quotation for the Male Female Butterfly Ball Valve (Code: 30-0A112) or any variant in our 2PC ball valve range, please contact our international sales team with your:
Required size range and quantities
Material grade (CF8 / CF8M)
Thread standard (ASME / BSP / DIN / JIS / ISO)
Application media and operating conditions
Any certification, testing, or documentation requirements
