Reducer Ball Valve

Name: Reducer Ball Valve
Brand: Leadtek
SKU: 233757464

As a leading reduced bore ball valve manufacturer in China, we are proud to present our latest product — the 2 Piece Reducing Ball Valve. This product is designed to meet the highest quality standards and deliver exceptional performance for various industrial applications. In this introduction, we will explore the unique features, advantages, and how this valve can add value to your business.

Send Inquiry

Product Details

Reduced Bore Ball Valve Manufacturer

Item No:

As a leading reduced bore ball valve manufacturer in China, we are proud to present our latest product - the 2 Piece Reducing Ball Valve. This product is designed to meet the highest quality standards and deliver exceptional performance for various industrial applications. In this introduction, we will explore the unique features, advantages, and how this valve can add value to your business.

Get A Free Sample

Key Features

Reduced Bore Design

The ball diameter is one size smaller than the pipe diameter (e.g., a 4" pipe with a 3" ball), which increases the flow velocity without changing the flow rate (Q=AV).

Convenient Maintenance

The Reducer ball valve has a detachable 2-piece structure, making it easy to inspect and maintain internal components. It also accommodates NPT threaded connections.

Efficient Flow

The quarter-turn operation reduces pressure drop and is suitable for rapid shut-off applications.

Comparison with Full Bore

Full Bore Valve: The ball diameter is the same as the pipe diameter, offering higher flow but a larger size.

Reduced Bore Valve: The structure is more compact, with higher flow velocity, making it ideal for space-restricted or high-speed applications.

Typical Applications

The Reducer ball valve is commonly used in petroleum, chemical, and water treatment industries, where precise flow control is required.

Quality Control by the Pressure-Reducer ball valve Manufacturer

100% Leaking Test

Only the valves which have past the pressure testing can be sent to our customers.

Accurate Thread Type

Each machine is equipped with thread gauges. Workers will test the thread one by one to make sure the correct thread.

Correct Dimension

We design the Reducer Ball Valve by our own technical team. It is medium weight, not the light weight.

100% real material

LEADTEK do 100% mill test according to ASTM A351/A351M. Ni is 8-11 and Cr is 18-21 for stainless steel 304 while Ni is 9-12 and Cr is 18-21 for stainless steel 316.

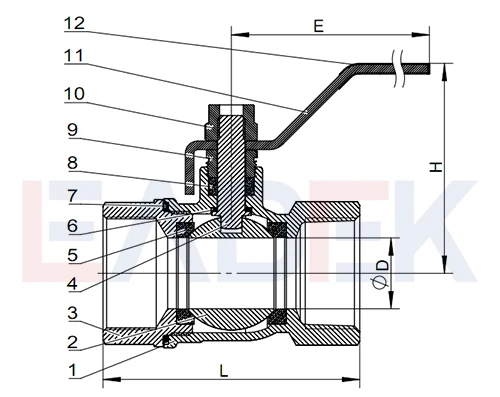

Dimension Of 2-piece reduced ball valve

2 Piece Reducing Ball Valve drawing

2-piece reduced ball valve data sheets

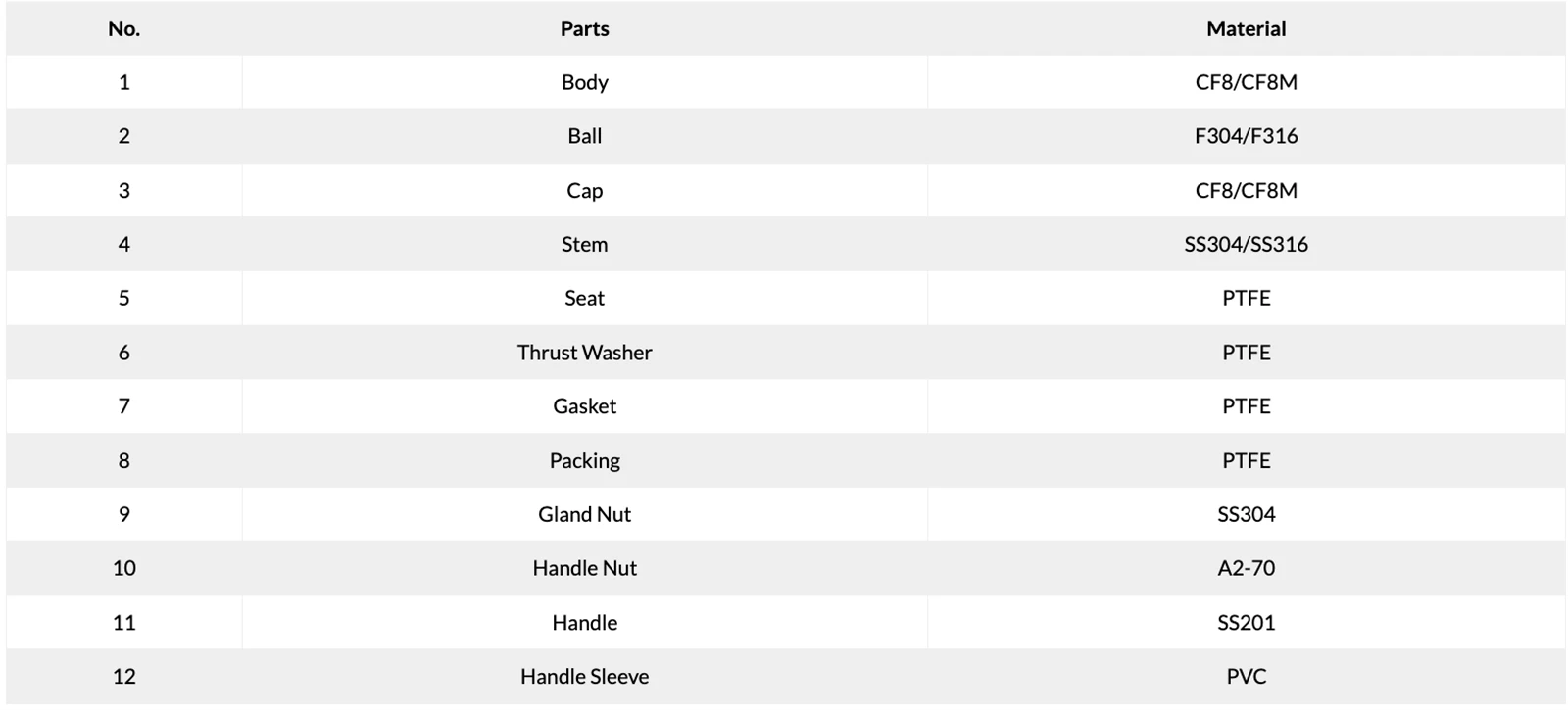

Material List Of Reducer ball valve

Reduced Bore Ball Valve Manufacturer Material Lis

Specification Of Reducer ball valve

2 Piece Reducing Ball Valve Specification

FAQ

Q: Can we print our own logo?

A: Yes,we offer OEM service.

Q: Do you provide sample?

A: Yes,we provide sample and the sample cost will be refund to you when confirm the order.

Q: What's your products?

A: Stainless steel industry valves & pipe fittings, and sanitary valves & fittings.

Q: What's the MOQ for your products?

A: We do not have MOQ because we are factory and have a big warehouse.

Q: May I know what's the nearest airport from your company?

A: Quzhou airport-->Yiwu airport-->Hangzhou airport-->Shanghai airport. These airports are near to us. We can pick you up from the airport.

Q: When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will offer your inquiry in priority.

Q: Can you do the design for us?

A: Yes. We have a professional team having rich experience in design and manufacturing.

Q: How long can I expect to get the sample?

A: 1-2 working days for samples in our stock.

Q: What about the lead time for mass production?

A: 15-30 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.
