Tri Clamp 3-Way Ball Valve
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of tri clamp 3-way ball valve in China. Please feel free to buy customized tri clamp 3-way ball valve at competitive price from our factory. Also, free sample is available.
Product Overview

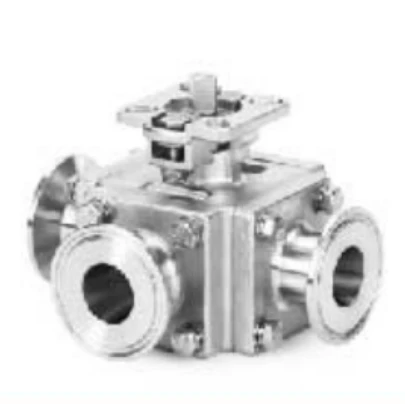

Tri Clamp 3-Way Ball Valve is engineered for precision flow control in sanitary and industrial fluid systems. Built to PN16 pressure rating and compliant with SMS/3A/ISO connection standards, this three-way valve enables flexible flow diversion or mixing in a single compact unit - eliminating the need for multiple two-way valves in the line. Suitable for water, oil, and gas media, with an operating temperature range of -40°C to 180°C.
Available in T-port and L-port configurations to match different process routing requirements.
Dimensional Specifications
Specifications
| Standard | Detail |
|---|---|
| Pressure Rating | PN16 |
| Connection Type | SMS / 3A / ISO Clamp |
| Face to Face | MFR STD |
| Inspection | API 598, EN 12266-1 |
| Temperature Range | -40°C ~ 180°C |
| Media | Water, Oil, Gas |
| ISO5211 Actuator Pad | F03/F04 ~ F07/F10 (size dependent) |
Materials
| No. | Part | Material |
|---|---|---|
| 1 | Body | CF8 / CF8M |
| 2 | Bonnet | CF8 / CF8M |
| 3 | Ball | F304 / F316 |
| 4 | Seat | M111 |
| 5 | Stem | F304 / F316 |
| 6 | Thrust Washer | PTFE |
| 7 | Packing Washer | PTFE |
| 8 | Packing Gland | F304 |
| 12 | Handle | 304 |

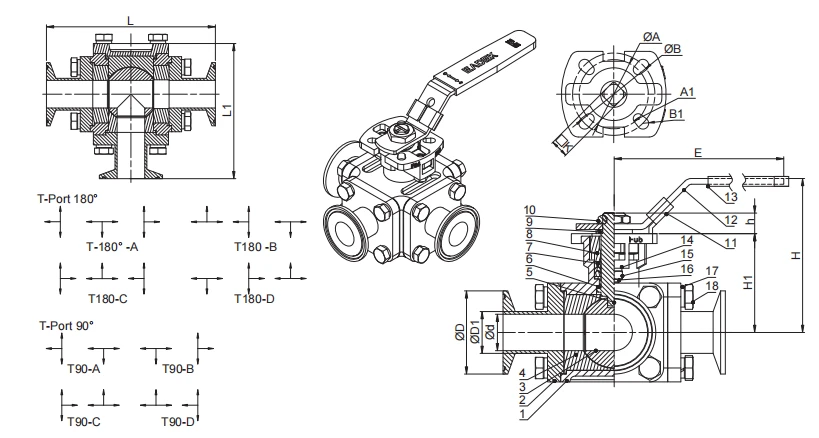

Dimensional Data (mm)
| Size | ØD | ØD1 | Ød | L | L1 | H1 | h | H | E | ISO5211 |
|---|---|---|---|---|---|---|---|---|---|---|
| ½″ | 25.2 | 12.7 | 9.4 | 115 | 90.5 | 49 | 9 | 76 | 120 | F03/F04 |
| ¾″ | 25.2 | 19.05 | 15.75 | 125 | 98.5 | 49.5 | 9 | 76.5 | 120 | F03/F04 |
| 1″ | 50.5 | 25.4 | 22.1 | 135 | 107 | 62.5 | 11 | 94.5 | 150 | F04/F05 |
| 1¼″ | 50.5 | 31.75 | 28.45 | 155 | 126 | 68 | 11 | 100 | 150 | F04/F05 |
| 1½″ | 50.5 | 38.1 | 34.8 | 165 | 134.5 | 80 | 14 | 115.5 | 190 | F05/F07 |
| 2″ | 64 | 50.8 | 47.5 | 185 | 153 | 87.5 | 14 | 123.5 | 190 | F05/F07 |
| 2½″ | 77.5 | 63.5 | 60.2 | 215 | 181.5 | 112 | 17 | 154 | 260 | F07/F10 |
| 3″ | 91 | 76.2 | 72.9 | 245 | 209 | 121.5 | 17 | 163.5 | 260 | F07/F10 |
| 4″ | 119 | 101.6 | 97.38 | 295 | 253 | 149 | 22 | 196.0 | 320 | F07/F10 |
Key Design Features
Full bore design
Ensures unrestricted flow with minimal pressure drop across all ports.
Mounting Pad 3-Way Ball Valve design per ISO5211
Direct actuator mounting without additional bracket, reducing installation complexity and enabling easy automation.
Back seal multiple leakage-proof design
Stem seal backed by PTFE packing washer and adjustable packing gland, serviceable without disassembly.
Stem anti-ejection & anti-scratch protection
Designed for long-term operational safety under cycling conditions.

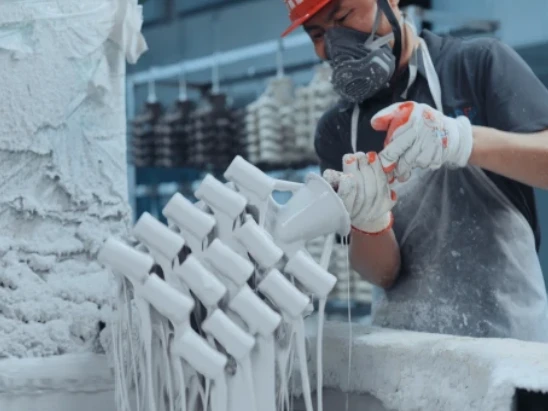

Investment casting construction
CF8/CF8M body and bonnet deliver consistent dimensional accuracy and surface integrity for sanitary-grade applications.
RoHS compliant
Passes environmental substance restrictions for global market acceptance.
Port Configuration Guide
Choosing the right port type determines how flow is routed through the valve. Both T-port and L-port variants share identical external dimensions and mounting interfaces - the difference lies entirely in the internal ball channel geometry.
T-Port
T-Port allows three flow paths: straight-through, 90° diversion, or full mixing/splitting between all three ports simultaneously. Best suited for processes requiring flow distribution or combining from two sources into one outlet.

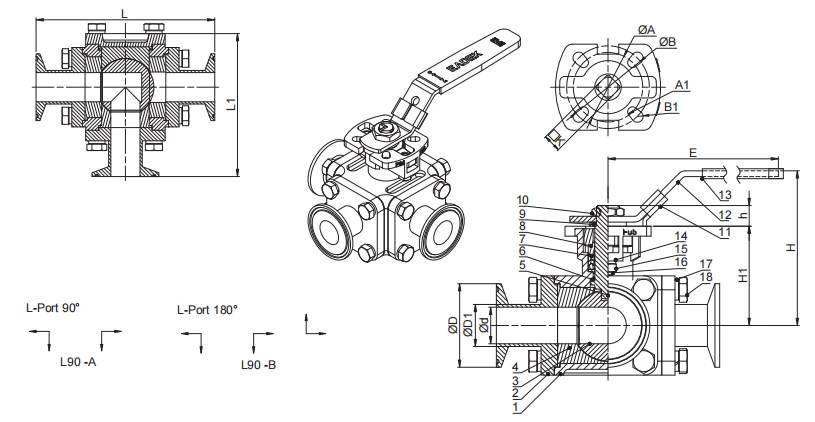

L-Port
L-Port connects only two of the three ports at any given position, routing flow in an L-shaped path. A 90° handle rotation switches which two ports are active. Preferred for straightforward A-to-B or B-to-C switching without cross-flow.
| T-Port | L-Port | |
|---|---|---|
| Flow paths per position | Up to 3-way simultaneous | 2-way only |
| Typical use | Mixing / splitting / diverting | Stream switching |
| Handle rotation to switch | 90° or 180° | 90° |
| Dead-leg risk | Lower | Application-dependent |
If your process requires diverting one inlet to two outlets - or combining two inlets into one - T-port is the standard choice. For alternating between two separate circuits, specify L-port when placing your order.
Applications & Industries
The 3-Way Ball Valve with Mounting Pad is widely specified in food & beverage processing and pharmaceutical production, where CF8M wetted surfaces and PTFE seating support CIP/SIP-compatible hygienic systems. In chemical and petrochemical environments, F316 ball and stem options handle aggressive media under PN16 rated pressure, inspected to API 598. New energy and semiconductor facilities rely on the precision-machined bore and ISO5211 actuator pad for integration into automated cooling and ultra-pure fluid circuits. OEM skid builders and machine manufacturers specify this valve for its direct actuator-mount capability, eliminating custom brackets across pneumatic and electric drive systems.
Why Source from Leadtek
ZHEJIANG LEADTEK FLUID TECHNOLOGY CO., LTD. is a vertically integrated manufacturer with over 30 years of precision casting expertise, operating from a 37,000㎡ facility in Quzhou, Zhejiang. We control the full process in-house - investment casting, CNC machining, assembly, and testing - with 400+ production machines and a dedicated quality lab.
Certified to ISO 9001, ISO 14001, CE, and holding 40+ patented technologies, LEADTEK supplies B2B customers across 80+ countries including the US, Germany, South Korea, and the Middle East. Our Sanitary Three-Way Clamp Ball Valve line is built to meet the exacting standards of food processing, pharmaceutical, chemical, and new energy sectors.
Monthly output capacity exceeds 400 tons. OEM/ODM and custom specifications are supported.
Frequently Asked Questions
Q: Can the valve be converted between T-port and L-port after purchase?
A: No. The port configuration is determined by the internal ball geometry, which is fixed at the time of manufacture. Specify T-port or L-port when placing your order based on your process routing requirements.
Q: What actuator brands are compatible with the ISO5211 mounting pad?
A: The ISO5211 interface is a universal standard, making the valve compatible with pneumatic and electric actuators from major brands including Rotork, Auma, Bettis, and most European and Asian manufacturers. Match the F-series pad size to your actuator's drive coupling - refer to the dimensional table for the correct ISO5211 designation by valve size.
Q: Is the packing seal replaceable without removing the valve from the pipeline?
A: Yes. The packing washer and gland are designed for in-line adjustment and replacement without disassembly of the valve body or disconnection from the pipeline, reducing maintenance downtime in continuous process systems.
Q: What is the difference between CF8 and CF8M body material, and which should I select?
A: CF8 is the cast equivalent of 304 stainless steel, suitable for general water, oil, and gas service. CF8M is the cast equivalent of 316 stainless steel, offering superior resistance to chlorides, acids, and corrosive chemical media. For food, pharmaceutical, or chemical applications involving aggressive fluids, CF8M is the recommended choice.
Q: What is the minimum order quantity, and are custom sizes or configurations available?
A: MOQ varies by specification - contact our sales team for current stock availability on standard sizes from ½″ to 4″. Custom bore dimensions, non-standard port angles, and OEM branding are supported through our in-house casting and CNC machining process. Lead times for custom orders are confirmed at the quotation stage.
