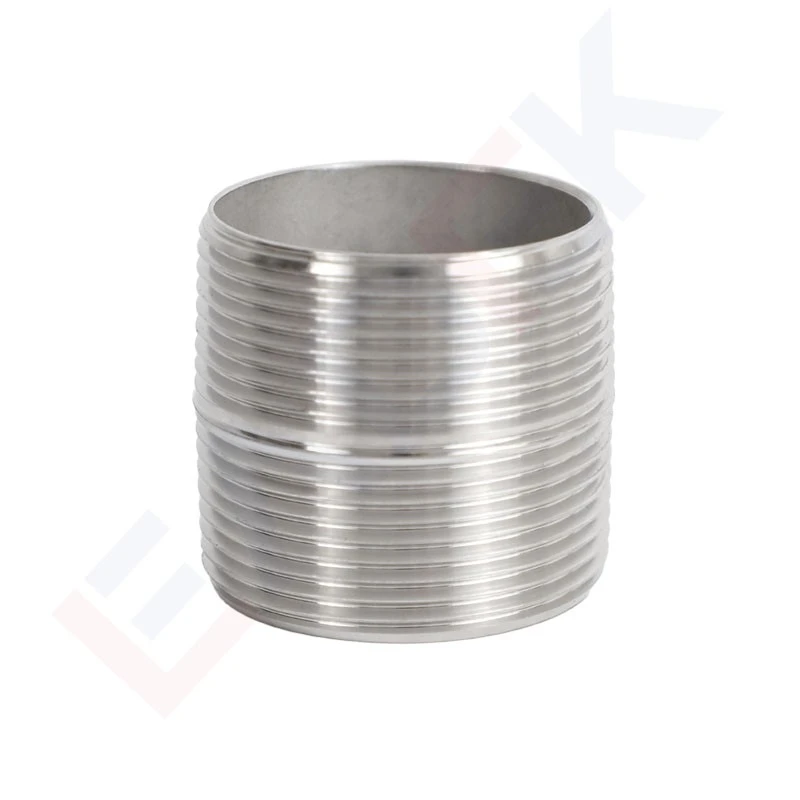

Close Nipple
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of close nipple in China. Please feel free to buy customized close nipple at competitive price from our factory. Also, free sample is available.
Overview
A close nipple is a short pipe fitting with external threads on both ends, designed for pipeline and piping systems. Because it is fully threaded along its entire length, with no unthreaded section, it allows for compact installation in limited spaces. Stainless steel versions are especially suitable for applications that require tight, space-saving connections and minimal joint length. The overall length depends on the thread length. When installed between two internally threaded fittings, there is virtually no exposed unthreaded section, and the connection is extremely compact. As a result, the two fittings sit very close to each other, and the joint appears almost flush. When ordering stainless steel products of this type, please specify the nominal size followed by the "close" type, for example: 1/2".
Close Nipple Description
● Structural Features: A close nipple is a short pipe fitting with external threads on both ends.
● Length Design: Its length is designed to be minimal for pipe fittings.
● Connection Method: With no unthreaded section, it can tightly connect two internal threaded fittings.
Primary Uses：Used to provide a secure and reliable connection between two internally threaded pipe fittings in pipeline and plumbing systems.
Hand Tightening
Initial Installation
Screw one of the external threads into an internal thread of the same size.
Manual Fixing
First, hand-tighten the fitting, and use Teflon tape if necessary to enhance sealing.
Final Tightening
Screw it into the second fitting and further tighten with a wrench if needed.
Size Specification：Size Matching: The size of the close nipple pipe fitting is determined by the thread size it connects to. For example, a 1/2" close nipple fits a 1/2" internal pipe thread.
Other Names:
- Threaded Nipple
- Closed Threaded Nipple Fitting
Material Structure: Used to provide a secure and reliable connection between two internally threaded pipe fittings in pipeline and plumbing systems.
Product Specifications:
Size Range: 1/4" to 4"
Material: Stainless Steel
Thread Type: External Thread NPT x External Thread NPT
Working Pressure: 150# Class Fittings
| Size | DN | ΦD | L |
| 1/8" | 6 | 10.3 | 3/4" |
| 1/4" | 8 | 13.7 | 7/8" |
| 3/8" | 10 | 17.1 | 1" |
| 1/2" | 15 | 21.3 | 1 1/8" |
| 3/4" | 20 | 26.7 | 1 3/8" |
| 1" | 25 | 33.4 | 1 1/2" |
| 1 1/4" | 32 | 42.2 | 1 5/8" |
| 1 1/2" | 40 | 48.3 | 1 3/4" |
| 2" | 50 | 60.3 | 2" |
| 2 1/2" | 65 | 73 | 2 1/2" |
| 3" | 80 | 88.9 | 2 5/8" |
| 4" | 100 | 114.3 | 2 7/8" |
Applications
Water Supply and Drainage Systems
- Cold water systems
- Hot water pipelines
- General water supply and drainage systems
Fire Protection Systems
- Sprinkler piping connections
- Branch line short connections
Industrial Piping Systems
- Factory fluid transfer pipelines
- Gas and liquid transport lines
- Short connections between equipment
Oil, Gas and Chemical Systems
- Oil and gas pipelines
- Chemical fluid transfer systems
- Corrosive media pipelines (often using stainless steel materials)
HVAC Systems
- Chilled water pipelines
- Air conditioning circulation systems
- Equipment connection sections
Equipment and Mechanical Piping
- Pump and valve connections
- Compressor piping systems
- Modular equipment connections
FAQ
Q: What materials are close nipples made of?
A: Close nipples are usually made of stainless steel such as 304 or 316 grades. These materials provide excellent corrosion resistance, strength, and durability, making them suitable for industrial and fluid system applications.
Q: How do you ensure product quality?
A: All products are manufactured under strict quality control standards, including material inspection, production process monitoring, and final product testing before shipment to ensure consistent quality.
Q: Do you provide OEM or customized pipe fittings?
A: Yes, we provide OEM and customized services for pipe fittings. Customers can request specific sizes, materials, thread types, or packaging according to their project requirements.
Q: What is your delivery time for orders?
A: Delivery time varies depending on order quantity and product specifications. For standard items, production is usually completed within a short lead time, while customized orders may require additional time.
