Hex Hose Nipple
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of hex hose nipple in China. Please feel free to buy customized hex hose nipple at competitive price from our factory. Also, free sample is available.
Product Introduction

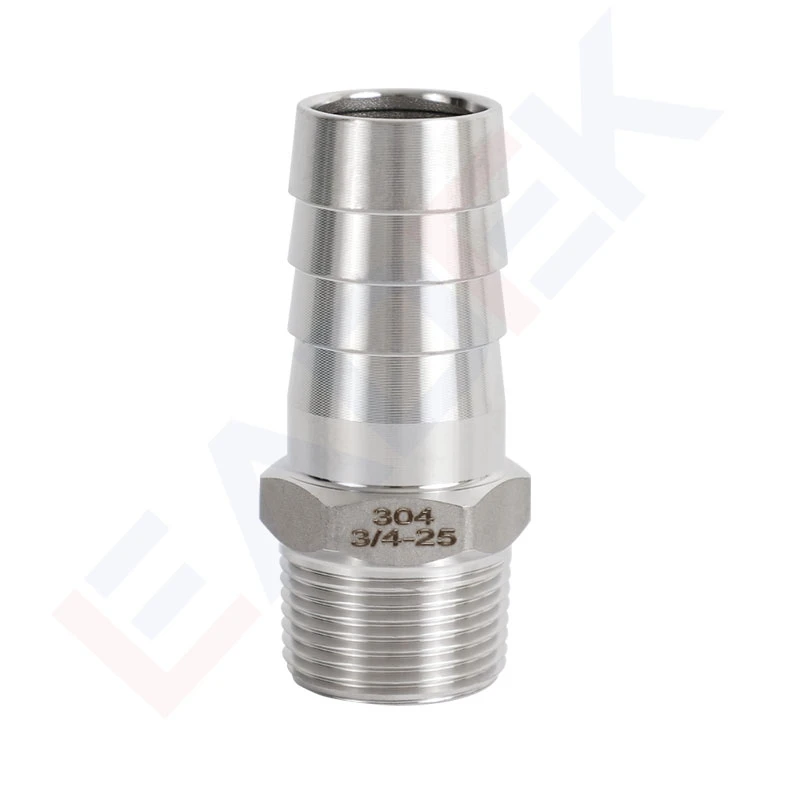

Hex Hose Nipple connects a threaded pipe port on one side to a flexible hose on the other. The threaded end uses standard male NPT or BSP threads to mate directly with valves, manifolds, or pipe adapters. The barbed end features raised ridges that grip the inner wall of rubber, PVC, or silicone hoses to form a secure mechanical seal. A hex body between the two ends provides a wrench flat for controlled installation torque, preventing overtightening that could damage connected equipment.
This fitting is made from solid 304 or 316 stainless steel bar stock using a forged process-not cast, not welded. The forging eliminates internal porosity, producing a grain structure that resists cracking under pressure cycles and vibration. It is widely used in chemical dosing lines, hydraulic circuits, pneumatic systems, oil delivery, and industrial cooling networks where a reliable thread-to-hose transition point is required.
Key Features
Forged, not cast
No shrinkage voids or internal cracks. Forged stainless steel delivers consistent wall thickness and superior burst resistance compared to investment-cast alternatives.
01
Hex body for wrench installation
The flat wrench surface ensures controlled torque and prevents the fitting from spinning during hose clamping. Critical in confined spaces or automated assembly lines.
02
Clean, consistent threads
Threads are machined after forging to NPT or BSP standards. Smooth thread flanks reduce the risk of cross-threading and allow repeated assembly without galling.
03
Dual-material grade
304 grade for general water, air, and mild chemical service; 316 grade (2.5% Mo) for chloride-containing environments, seawater, or chemical processing.
04
Full-coverage barb ridges
The bamboo-joint barb profile provides mechanical grip across the hose wall. Rated for use with hose clamps; clamp groove geometry is sized for standard stainless steel worm-drive clamps.
05
Specifications
| Parameter | Detail |
|---|---|
| Material | SS 304 / SS 316 (optional) |
| Thread Type | NPT / BSP (specify on inquiry) |
| Thread End | Male external thread |
| Hose End | Barbed (ridged, bamboo-joint profile) |
| Size Range | 1/8" to 3/4" thread × 6 mm to 26 mm hose OD |
| Surface Finish | Bright machined or passivated |
| Pressure Rating | Consult datasheet by size |
| Standards | Manufactured to ISO 9001 quality system |
| Certification | CE, ISO 14001 (factory-level) |
(Full dimensional table: see drawing section below)
Dimensional Drawing & Size Table
|
Size |
L |
L1 |
L2 |
SW |
|
1/8"-6 |
39 |
22 |
11 |
14 |
|
1/8"-8 |
42 |
25 |
11 |
14 |
|
1/8"-9.5 |
45 |
28 |
11 |
14 |
|
1/8"-10 |
45 |
28 |
11 |
14 |
|
1/4"-6 |
40.5 |
22 |
12.5 |
20 |
|
1/4"-8 |
43.5 |
25 |
12.5 |
20 |
|
1/4"-9.5 |
46.5 |
28 |
12.5 |
20 |
|
1/4"-10 |
46.5 |
28 |
12.5 |
20 |
|
1/4"-12 |
48.5 |
30 |
12.5 |
20 |
|
1/4"-13 |
50.5 |
32 |
12.5 |
20 |
|
3/8"-6 |
42 |
22 |
13 |
22 |
|
3/8"-8 |
45 |
25 |
13 |
22 |
|
3/8"-9.5 |
48 |
28 |
13 |
22 |
|
3/8"-10 |
48 |
28 |
13 |
22 |
|
3/8"-12 |
50 |
30 |
13 |
22 |
|
3/8"-13 |
42 |
32 |
13 |
22 |
|
3/8"-15 |
54 |
34 |
13 |
22 |
|
3/8"-16 |
54 |
34 |
13 |
22 |
|
1/2"-6 |
45 |
22 |
16 |
27 |
|
1/2"-8 |
48 |
25 |
16 |
27 |
|
1/2"-9.5 |
51 |
28 |
16 |
27 |
|
1/2"-10 |
51 |
28 |
16 |
27 |
|
1/2"-11 |
53 |
30 |
16 |
27 |
|
1/2"-12 |
53 |
30 |
16 |
27 |
|
1/2"-13 |
55 |
32 |
16 |
27 |
|
1/2"-14 |
55 |
32 |
16 |
27 |
|
1/2"-15 |
57 |
34 |
16 |
27 |
|
1/2"-16 |
57 |
34 |
16 |
27 |
|
1/2"-19 |
61 |
38 |
16 |
27 |
|
1/2"-20 |
61 |
38 |
16 |
27 |
|
3/4"-15 |
59 |
34 |
17 |
34 |
|
3/4"-16 |
59 |
34 |
17 |
34 |
|
3/4"-19 |
63 |
38 |
17 |
34 |
|
3/4"-20 |
63 |
38 |
17 |
34 |
|
3/4"-25 |
79 |
44 |
17 |
34 |
|
3/4"-26 |
79 |
44 |
17 |
34 |
Non-standard lengths and OD sizes available on request. Contact our technical team with your system requirements.
Application Scenarios
This fitting is designed for wherever a rigid threaded port meets a flexible hose in an industrial system:
Chemical & Petrochemical
Connecting dosing pump outlets to chemical injection hoses. 316 grade resists chlorides and weak acids.
Hydraulic & Pneumatic Systems
Thread-to-hose transition at cylinder ports, valve manifolds, and air compressor outlets where vibration demands a secure mechanical grip.
Industrial Cooling
Coolant supply and return connections to heat exchangers, machine tool spindles, and mold cooling circuits.
Food & Beverage (316 grade)
Low-pressure CIP rinse lines and process water connections where corrosion resistance and surface cleanability are required.
Customization Capabilities
Leadtek operates its own forging, CNC machining, and testing lines under one roof. This means we can modify:
- Thread standard - NPT, BSP, metric M-thread
- Material grade - 304, 316, 316L, duplex on request
- Hose OD - Any barb OD within our tooling range
- Surface treatment - Electropolish for sanitary or cleanroom applications
- Marking & branding - Laser engraving or stamped part numbers
Submit a drawing or describe your requirement - our engineering team will respond within 24 hours.
Related Article
Advantages and Disadvantages of Barbed Hose Fittings - The barb structure that grips a hose in place on a Hex Hose Nipple has real mechanical advantages in vibration-prone systems, but also specific limitations in high-pressure service and maintenance-intensive applications that engineers should understand before specifying a Male Thread Hose Barb Fitting.
Why Source from Leadtek
Leadtek has been manufacturing stainless steel fluid control components since 1994. Every Hex Hose Nipple leaves a single vertically integrated facility in Zhejiang - forging, CNC machining, thread cutting, and dimensional inspection are all done in-house, which means no subcontracting risk and consistent batch-to-batch quality. The factory holds ISO 9001 and ISO 14001 certification, and products are CE marked. With active customers across 80+ countries and free samples available before any volume commitment, Leadtek is set up to support both distributors building a catalog and engineers specifying a single project.
FAQ
Q: What is the difference between a Hex Hose Nipple and a standard pipe nipple?
A: A pipe nipple has male threads on both ends and connects two threaded fittings. A Hex Hose Nipple has a male thread on one end and a barbed hose tail on the other, designed specifically for thread-to-flexible-hose transitions. The hex body allows wrench tightening that a plain nipple typically does not provide.
Q: Can I use a Male Thread Hose Barb Fitting without a clamp?
A: For low-pressure water or air lines below 6 bar, the barb grip alone is often sufficient. For hydraulic oil, chemical service, or any application above 6 bar, we recommend a stainless steel worm-drive clamp over the hose barb section to ensure a secure seal.
Q: Is 304 or 316 grade recommended for seawater cooling systems?
A: 316 grade is required for seawater, brackish water, or any chloride-containing environment. The 2.5% molybdenum content in 316 significantly improves pitting corrosion resistance compared to 304.
Q: What is your standard thread type - NPT or BSP?
A: We produce both. Please specify your required thread standard when inquiring. If you are unsure, share your pipe connection specs and our technical team will confirm the correct thread form.
Q: Can you produce a custom OD or length not listed in the table?
A: Yes. We maintain our own tooling and CNC programs. Submit your target dimensions and we will quote accordingly, typically within 24 hours.
