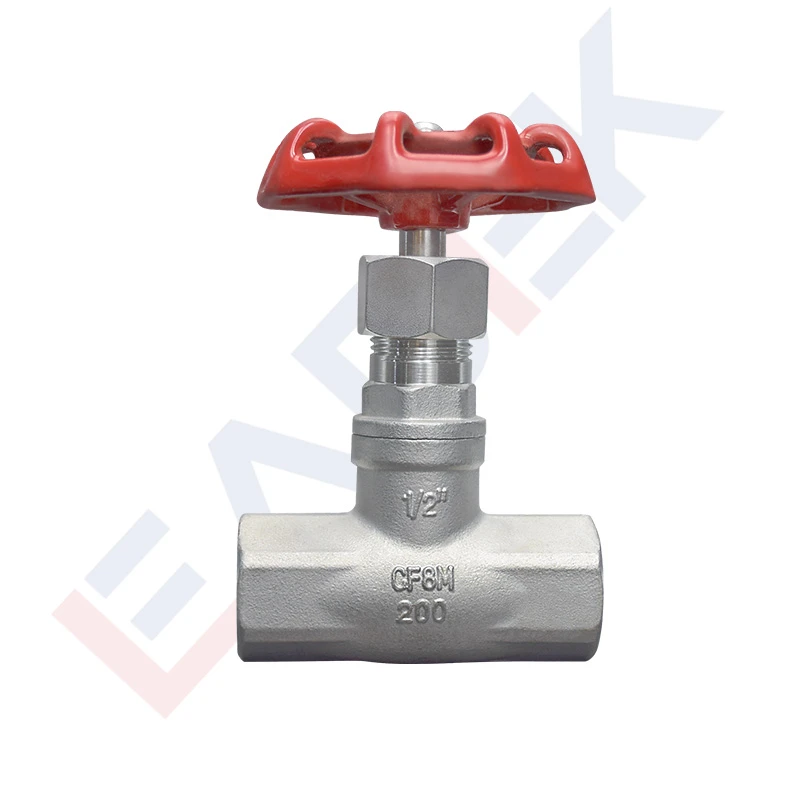

CF8M SS304 Globe Valve | DIN Stainless Steel Globe Valve
Product Details
Zhejiang Leadtek Fluid Technology Co., Ltd. is one of the most experienced manufacturers and suppliers of cf8m ss304 globe valve | din stainless steel globe valve in China. Please feel free to buy customized cf8m ss304 globe valve | din stainless steel globe valve at competitive price from our factory. Also, free sample is available.
Why Choose the Globally Trusted LEADTEK SS Globe Valve Manufacturer?
100% Authentic Materials
• SUS304/SUS316 precision-cast valve body, with authoritative mill material reports provided for each batch
• Full quality inspection from raw materials to finished products to ensure no inferior replacements
Military-Grade Manufacturing Standards
• 100% full inspection! Each valve undergoes:
✓ 5 appearance checks ✓ PN16 pressure tests ✓ Helium mass spectrometry leak detection (zero leakage)
• Thread accuracy up to ±0.01mm, with each piece inspected by gauge to ensure perfect sealing
Exceptional Environmental Adaptability
• Standard -20℃ ~ 120℃ working conditions (custom high-temperature version up to 250℃ available)
• Patented valve body design, 15% heavier than competitors, increasing durability by 300%
Universal Global Interfaces
• Supports 6 international standards including BSPT, BSPP, NPT, G threads for easy replacement of existing equipment
Lifetime After-Sales Guarantee
• Our in-house engineering team responds 24/7
• Quality issue commitment: "Replace first, investigate later," ensuring zero-risk purchases
Contact us now for a free sample
① Third-party testing report sample
② Product comparison guide
③ Customized engineering solutions
Stainless Steel Globe Valve Manufacturers
Item No:
DIN stainless steel globe valves are designed to meet industrial application demands, offering reliable performance and stable flow control. We are committed to producing and delivering high-end stainless steel angle globe valves crafted to superior standards. Our globe valve ss304 is no exception. The valve body is made of high-quality stainless steel, offering excellent durability and wear resistance, even in harsh environments.
CF8M Stainless Steel Globe Valve Working Principle
Unlike traditional ball valves, the DIN stainless steel globe valve is a control device specifically designed for precise adjustment of pipeline fluid flow. Its core structure includes a valve plug component (often referred to as the valve core or disc) that moves up and down and an annular sealing seat fixed inside the valve body.
The manual threaded stainless steel globe valve is named for its spherical valve cavity structure, with the internal flow channel divided into two separate chambers by a diaphragm. The upper part of the valve body has a precisely machined valve seat structure. When the valve stem is rotated, it presses the valve plug down, achieving complete sealing of the flow channel. The valve plug component (also known in industrial fields as the sealing disc or closure part) is connected to the operating mechanism via the valve stem:
• Manual Operation: The valve stem is rotated by handwheel to control the lifting movement.
• Automatic Control: A light rod structure combined with an actuator (e.g., electric or pneumatic device) drives the movement.
About the DIN Stainless Steel Globe Valve
Precise Flow Control Design
The valve plug and the inclined valve seat make linear contact, and the opening can be precisely controlled through the vertical stem travel. This design is suitable for refineries and other applications requiring precise throttling. The valve seat design allows high-viscosity fluids (such as crude oil and slurry) or particulate media (such as wastewater and mineral slurries) to pass smoothly, avoiding clogging of the valve seat.
Explosion-Proof and Abrasion-Resistant
The globe valve is made of 304 stainless steel. The valve body features pressure resistance, explosion-proof properties, high temperature resistance, and durability. The wall thickness is uniform, offering high abrasion resistance and a long service life.
Excellent Craftsmanship
The inner walls of the globe valve are polished to a smooth surface, ensuring no scaling or blockage, making it practical and durable. NPT threads ensure the sealing of the globe valve and are compatible with NPT threaded pipes of other materials.
Wide Applications
Various specifications are suitable for most pipeline systems. These valves are widely used in flow control pipelines for household or industrial purposes, sand-containing media in oil pipelines, and throttling in wastewater treatment systems.
Specifications: Maximum working pressure: 1.6 MPa / 200 psi. Temperature range: -20℃ to +120℃ (-4℉ to 248℉). Applicable media: Water, oil, non-corrosive combustible gases. Please select the appropriate size according to the DIN stainless steel globe valve size chart.
Product Advantages
Product Description
1)Lost wax casting body
2)Metal seal
3)Non-rising stem design
4)Handwheel operation
5)Thread types: BSPT, BSPP, G, NPT available
Globe valve dimensions and Materials List
|
Size |
DN |
L |
W |
H mm |
N.W. kgs |
|
1/2" |
15 |
62 |
60 |
90 |
0.370 |
|
3/4" |
20 |
80.5 |
60 |
97 |
0.530 |
|
1" |
25 |
87 |
70 |
100 |
0.730 |
|
1-1/4" |
32 |
97 |
90 |
115 |
1.03 |
|
1-1/2" |
40 |
113.5 |
100 |
132 |
1.41 |
|
2" |
50 |
135 |
110 |
140 |
2.08 |
|
No. |
Parts |
Material |
|
1 |
Body |
CF8/CF8M |
|
2 |
Disc |
CF8/CF8M |
|
3 |
Cap |
CF8/CF8M |
|
4 |
Gasket |
PTFE |
|
5 |
Packing |
F304/F316 |
|
6 |
V-Ring Gasket |
PTFE |
|
7 |
Gland |
F304/F316 |
|
8 |
Cap Nut |
CF8/CF8M |
|
9 |
Wheel Handle |
Aluminum |
|
10 |
Handle Nut |
Zi |
|
11 |
Handle |
SS304 |
|
12 |
Stem Nut |
SS304 |
Specification
|
Product Type |
SS Globe Valve |
|
Size |
1/2"-4"(DN15-DN100) |
|
Material |
SUS304, SUS316 |
|
Thread |
BSPT, BSPP, G, NPT |
|
Connection |
Female thread |
|
Pressure |
200PSI |
|
Temperature |
-20℃ to +120℃ |
|
Application |
Ordinary pipelines for steam, air, water, oil, gas(except flammable or toxic gas). |
|
Design Standard |
ASME B16.34 |
|
Technics |
Casting |
|
Inspection |
Thread test; Pressure leaking test; Visual inspection; |
|
Customized Support |
OEM, ODM, OBM |
|
MOQ |
No MOQ for our stock products |
|
Certificate |
ISO9001, ISO14001, ISO45001, CE, ROHs, KC, TS, etc.. |
FAQ
Q: What is CF8M in valve?
A: 'C' is for 'corrosion-resistance' while 'F' represents a blend of iron, nickel, and chromium in different percentages. The number '8' denotes the carbon content in the alloy and 'M' stands for Molybdenum.
Q: What is the difference between CF8M and 316 stainless steel?
A: CF8M, often referred to as 316 stainless steels in its cast form, is an austenitic stainless steel enhanced with 2.0% to 3.0% molybdenum for superior corrosion resistance. This addition significantly improves its resistance to pitting and crevice corrosion, particularly in chloride-rich environments like seawater.
